Fanless Industrial Compact PPC
The fanless industrial compact PPC is designed to withstand extreme environmental conditions. The HMI is operated via both resistive and capacitive multi-touch screens, also the panel pc is equipped with different Intel X86 processors such as Baytrail J1900, Gemini Lake J4125, J4105, N4000, Elkhart Lake J6412, J6413, Kaby Lake, Sky Lake, Wiskey Lake and Comet Lake etc to enable variable performance.
- Product Introduction

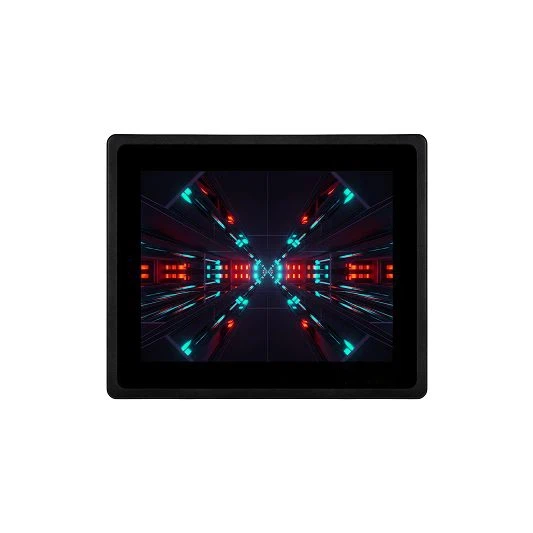

Fanless Industrial Compact PPC
The fanless industrial compact PPC is designed to withstand extreme environmental conditions. The HMI is operated via both resistive and capacitive multi-touch screens, also the panel pc is equipped with different Intel X86 processors such as Baytrail J1900, Gemini Lake J4125, J4105, N4000, Elkhart Lake J6412, J6413, Kaby Lake, Sky Lake, Wiskey Lake and Comet Lake etc to enable variable performance.
The embedded panel computer series is available in different display sizes raging from 10.4" to 21.5". The front panel rating IP 65 class, is protected dust and water jets. The metal housing withstands the extreme environmental conditions. The fanless cooling system making the AiO computer can operate 24/7 in many environmental areas.
The panel display using standard VESA mounting or Embedded solution or desktop solution. It meets the essential safety requirements set out in the applicable of CE. This system can be supplied with Windows 7, Windows 10 and Linux for option.
|
Model |
PS1041 |
||||
|
Display |
10.4 |
||||
|
Touch |
Resistive |
||||
|
Resolution |
1024*768 |
||||
|
Brightness |
300cd/m2 |
||||
|
Bios |
AMI BIOS |
||||
|
CPU |
Baytrail |
Gemini Lake |
Elkhart Lake |
Sky Lake（6-7） |
Whiskey Lake（8-10） |
|
Chips |
Intel® SOC |
||||
|
GPU |
Intel® HD Graphics |
Intel® UHD Graphics 600 |
Intel® UHD Graphics |
Intel® HD Graphics 610 |
Intel® UHD Graphics |
|
Internet |
Realtek RTL8106E |
RLT8111H/8111G |
RLT8111H/8111G |
RLT8111H/8111G |
RLT8111H/8111G |
|
Audio |
Realtek ALC662HD |
Realtek ALC269HD |
HS-100B |
HS-100B |
HS-100B |
|
RAM |
DDR3L 1333MHz |
DDR4 2133/2400MHz |
DDR4 3200MHz |
DDR4 2133 MHz |
DDR4 2666 MHz |
|
SSD |
M-SATA |
M-SATA |
M.2 2280 NVME |
M.2 2280 NVME |
M.2 2280 NVME |
|
Function |
Support WiFi、BT、4G etc. |
||||
|

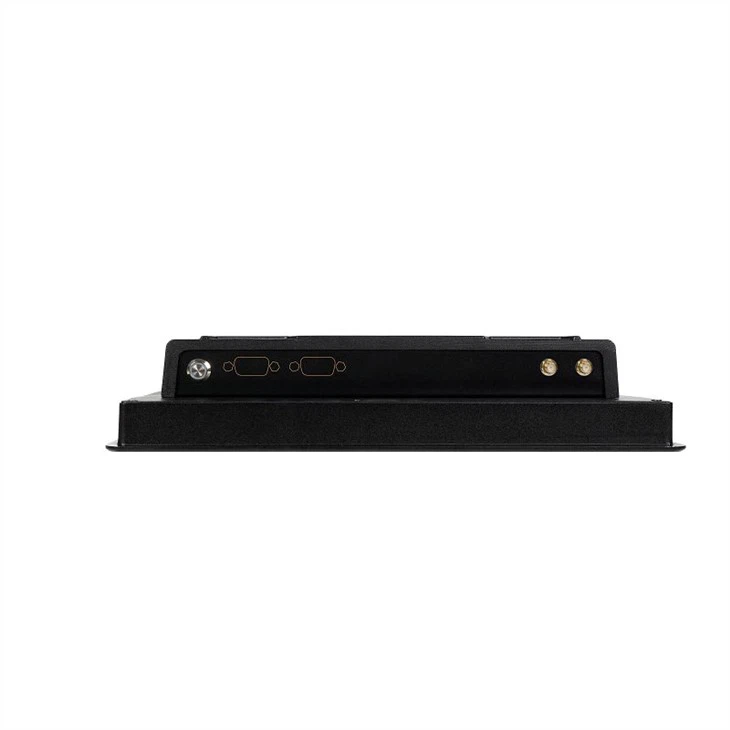

UP I/O |
1*Power Button（LED） |
1*Power Button（LED） |
1*Power Button（LED） |
1*Power Button（LED） |
1*Power Button（LED） |
|
2*Antennar |
2*Antennar |
2*Antennar |
2*Antennar |
2*Antennar |
|
|
2*USB/2*COM（Reserve） |
2*USB/2*COM（Reserve） |
2*USB/2*COM（Reserve） |
2*USB/2*COM（Reserve） |
2*USB/2*COM（Reserve） |
|
|
Bottom I/O |
1*Audio |
1*Audio |
1*Audio |
1*Audio |
1*Audio |
|
1*LAN |
1*VGA |
1*VGA |
1*LAN |
1*VGA |
|
|
3*USB2.0 |
1*HDMI |
1*HDMI |
2*USB3.0 |
1*HDMI |
|
|
1*USB3.0 |
2*USB2.0 |
2*USB2.0 |
1*HDMI |
4*USB3.2 Gen 2 |
|
|
1*HDMI |
2*USB3.0 |
2*USB3.2 Gen 1 |
1*VGA |
1*LAN |
|
|
1*VGA |
1*LAN |
1*LAN |
1*DC IN |
1*DC IN |
|
|
1*DC IN |
1*DC IN |
1*DC IN |
2*COM |
2*COM |
|
|
2*COM |
2*COM |
2*COM |
1*M3 Ground |
1*M3 Ground |
|
|
1*M3 Ground |
1*M3 Ground |
1*M3 Ground |
2*USB 2.0 |
1*CMOS |
|
|
Power |
DC 12V |
DC 12V |
DC 12V |
DC 12V |
DC 12V |
|
Speaker |
2* 4Ω 3W |
||||
|

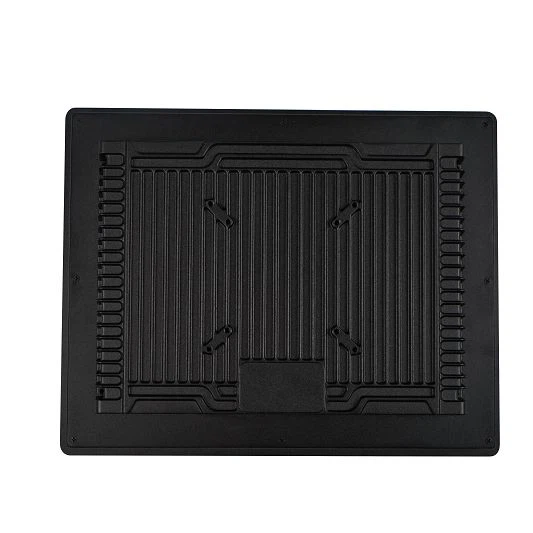

Heat Sink |
Fanless |
||||
|
Power Consumption |
<15W |
||||
|

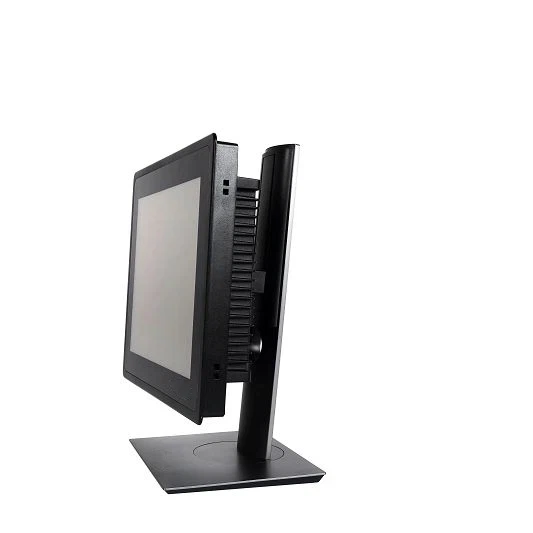

Install |
Embedded, Mounting, Table |
||||
|
Dimension |
280x227x59mm |
||||
|
Weight |
<2.6kg |
||||
|
Color |
Black |
||||
|
Material |
Aluminium Alloy |
||||
|
OS |
Windows 7 /Windows 10/Linux |
||||
